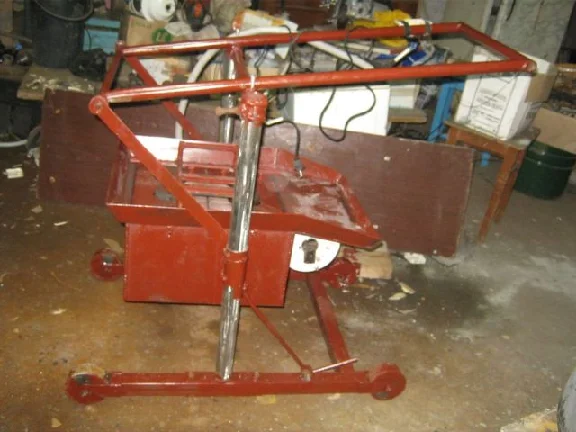

Shlakoblochnogo machine Mars (drawings) v2.0

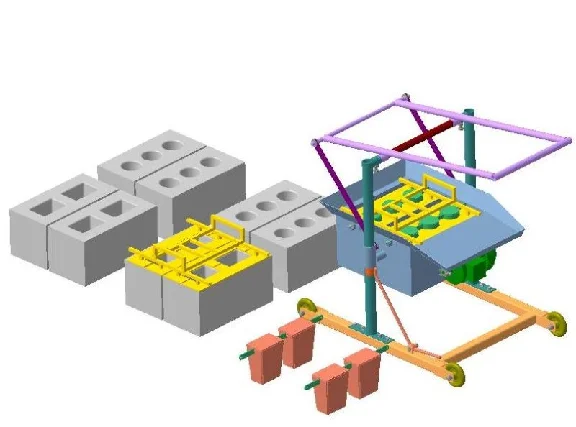

Attention DRAWINGS updated! Added the ability to replace a cylindrical postoobrazovateley into rectangular cavities. The ability to manufacture 2 kinds of blocks.
-------------------------------------------------- -
Specifications:
Capacity 90 pcs. / H
Power 320Vt
Voltage 220V
Number of revolutions 3000 rev / min
Dimensions of produced units: 390 mm x190 mm x190 mm
Massa55 kg

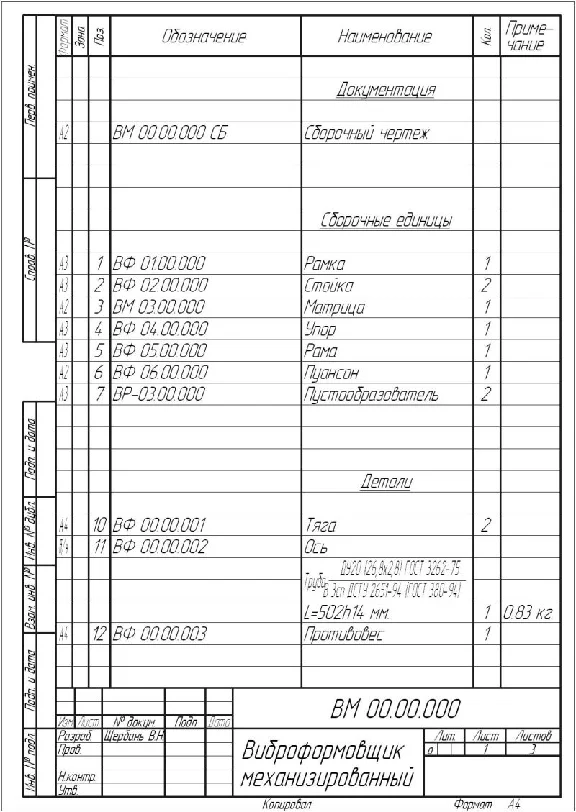

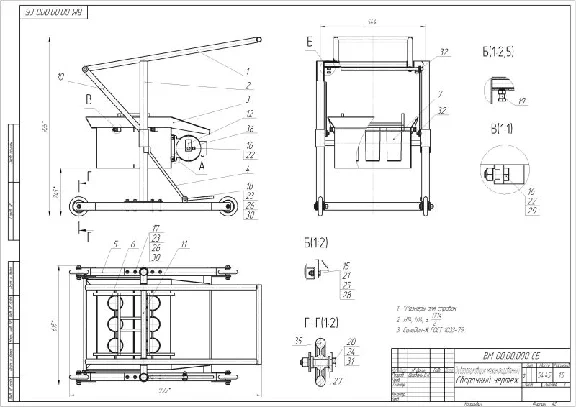

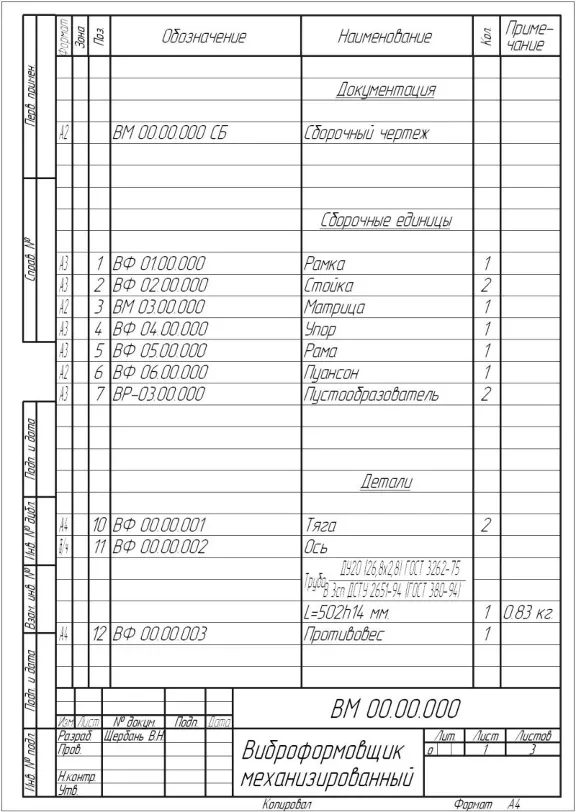

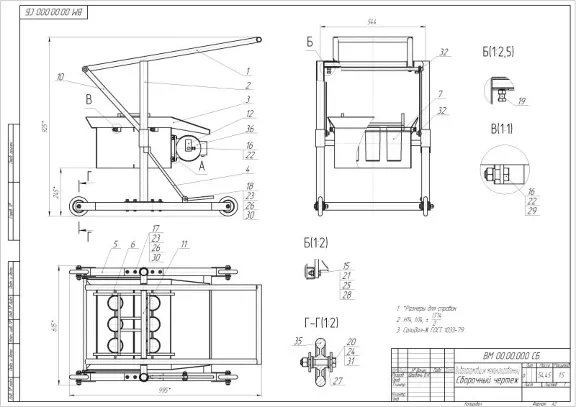

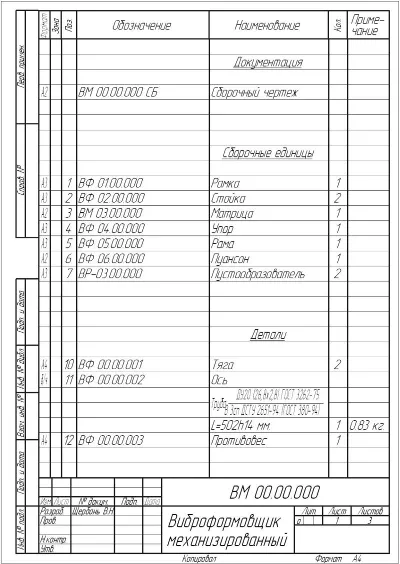

The documentation set includes assembly drawings, specifications and detailing - a total of 54 sheets of A4-A2. The drawings are made according to the rules of ESKD (Unified system for design documentation). Even if you are not able to make their own shlakoblochnogo machine, you can order it to these drawings in any engineering enterprise. The machine is simple to assemble, manufacture of parts does not require special precision and special equipment.
Drawings tif format with a resolution of up to 1247x1760 3514x2487 (stored 1: 1)
Download examples of drawings in real size can link:
http://depositfiles.com/files/b1cl2ayy4

Savings in view of materials and fitting-welding up to $ 100


Caution
On the Internet, many sorts of drawings shlakoblochnogo machines. Most of them are made of poor quality. I am the developer documentation, professional design engineer. Drawings are made by all the conditions of the Unified design documentation! All buyers give a free consultation before and after the purchase (click to ask the seller a question)
Do not waste your money in vain, buy proven records!
