Product description

Sketch of a two-story residential building.

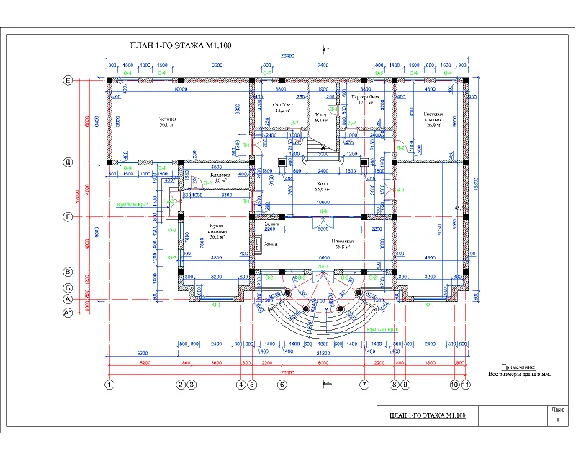

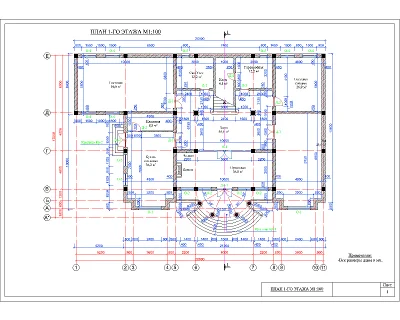

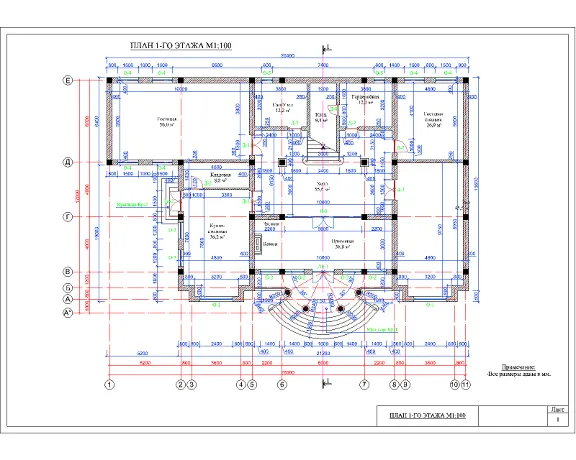

1. Plan of the 1st floor m1:100
2. Plan of the 2nd floor m1:100

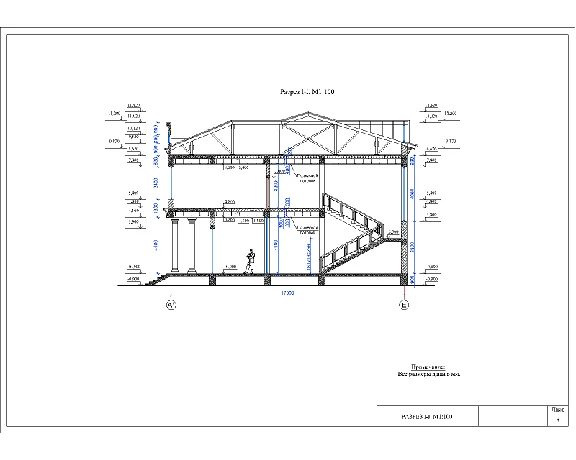

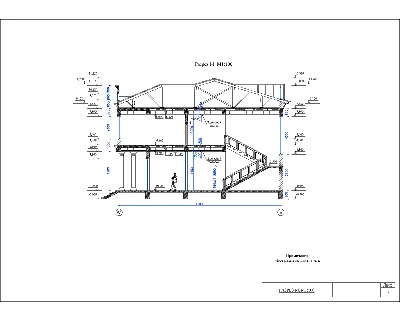

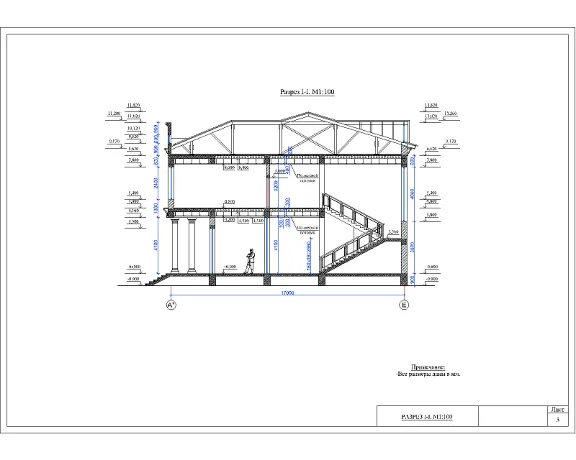

3. Section i-i. m1:100
4. Household plan. rooms.m1:100 section i-i.m1:100
5. Facades along the axes "1-6"; "6-1"; "a-b"; "b-a" .m1:100
6. Furniture arrangement plan of the 1st floor m1:100
7. Furniture layout plan of the 2nd floor m1:100
8. Gen. plan.

.DWG format file (AUTOCAD file - at least 2007)

Main features

  • Content type File
  • Content description 1176,94 kB
  • Added to the site 17.04.2023
File format .DWG (AUTOCAD-min 2007)
