Solution B11 D6 (Figure 1 conv 1) termehu Targ SM 1989

• USD
• RUB
• USD
• EUR
Sold: 11 last one 23 days ago
Refunds: 0

Content: d6-11.zip 49,4 kB
Loyalty discount! If the total amount of your purchases from the seller TerMaster more than:
 250 \$ the discount is 15% show all discounts 1 \$ the discount is 1%

Seller

TerMaster information about the seller and his items

Seller will give you a gift certificate in the amount of 0,033 \$ for a positive review of the product purchased.

Product description

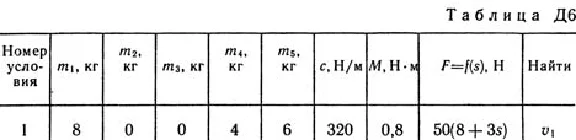

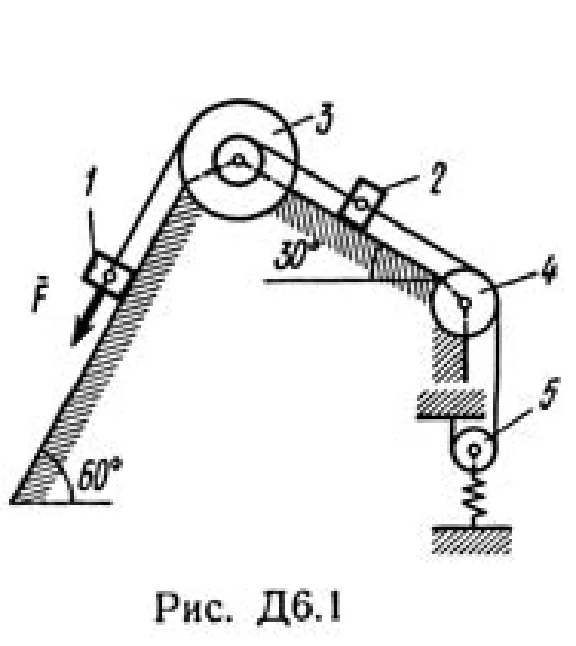

Solution of the D6 Option 10 - termehu of Targa SM 1989. Conditions to task Dynamics 6: Mechanical system includes loads 1 and 2, a stepped pulley 3 degrees with radii R3 = 0,3 m, r3 = 0,1 m and the radius of inertia about the axis of rotation ρ3 = 0,2 m, the radius of the block 4 R4 = 0,2 m and the roller (or mobile unit) 5 (Fig. D6.0 - D6.9, see Table. D6); body 5 is considered a solid homogeneous cylinder and the mass unit 4 - uniformly distributed over the rim. The coefficient of friction of the cargo plane f = 0,1. The bodies of the system are connected to each other threads thrown over blocks and wound on the pulley 3 (or a pulley and a skating rink); Lots of threads are parallel to the planes. To one of the bodies is fixed with a spring stiffness coefficient c. Under the force of F = f (s), depending on the movement s terms of its applications, the system is set in motion from rest; deformation of the spring at the start of movement is zero. When driving on the pulley 3 operates a constant moment M resistance forces (from the friction in the bearings). Determine the value of the required quantity at the time when the movement of s equals s1 = 0,2 m. The desired value is shown in the column "Find" table, where indicated: v1, v2, vC5 - speed cargo 1, 2 and the center of gravity of the body 5 respectively omega3 and omega 4 - angular velocity of the body 3 and 4. All the rollers, including rollers, wrapped yarns (such as roller 5 in Fig. 2), by rolling without sliding planes. In all the figures do not represent the load 2 if m2 = 0; the rest of the body should be represented, and when their weight is zero.

Сразу после оплаты Вам будет предложена ссылка для скачивания задачи Д6 Вариант 10 (соответствует рисунку 1 условию 0) по теоретической механике из решебника Тарга С.М. 1989 года для студентов-заочников машиностроительных, строительных, транспортных, приборостроительных специальностей высших учебных заведений. Задача оформлена в формате word, добавлена в архив zip.

Буду очень признателен, если Вы после успешной сдачи работы оставите положительный отзыв. Для меня это очень Важно.
Заранее спасибо.
