Solution D5 Var. 61, reshebnik termehu Targ SM 1983
Sold <10Product description

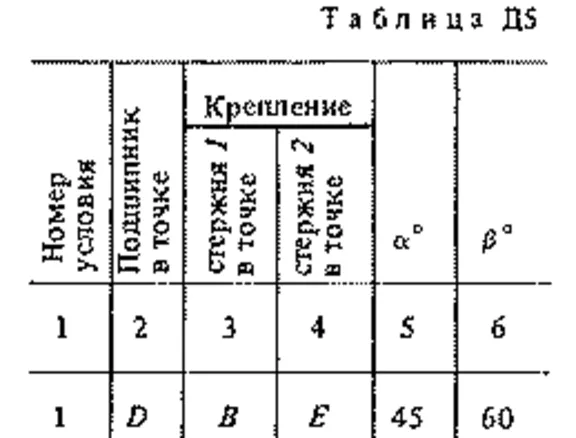

Condition Problem D5 (p. 47-49 zadachnik Targ SM 1983): Vertical shaft the AK (.. Figure D5.0, D5.9, Table A5), rotating at a constant angular velocity ω = 10 s-1, is fixed glide at point A and the cylindrical bearing at the point indicated in the Table. D5 in column 2 (AB = BD = DE = EK = b). Rigidly secured to the shaft rod 1 is weightless length l1 = 0,4 m spot m1 = weight of 6 kg and at the end of two homogeneous rod length l2 = 0,6 m with a mass m2 = 4 kg; both bars lie in one plane. Points of attachment to the shaft rods are indicated in the table in columns 3 and 4, and the angles α and β - in columns 5 and 6. Disregarding the weight of the shaft, and to define the reaction thrust bearing. When the final calculations take b = 0,4 m Setting D5 -. The application to the study of the motion of the principle of d´Alembert system.
Main features
- Content type File
- Content description 31,81 kB
- Updated on the site 13.04.2016
Additional description
The problem is solved by a methodical instructions and control tasks for part-time students of thermal power, mining, metallurgy, electro-instrument-making, automation and technological specialties universities.
The decision is decorated in WORD format.
Please leave your positive feedback after the test solution.
Thank you in advance.
