Solution D8-89 (Figure D8.8 condition 9 SM Targ 1989)

Solution D8-89 (Figure D8.8 condition 9 SM Targ 1989)

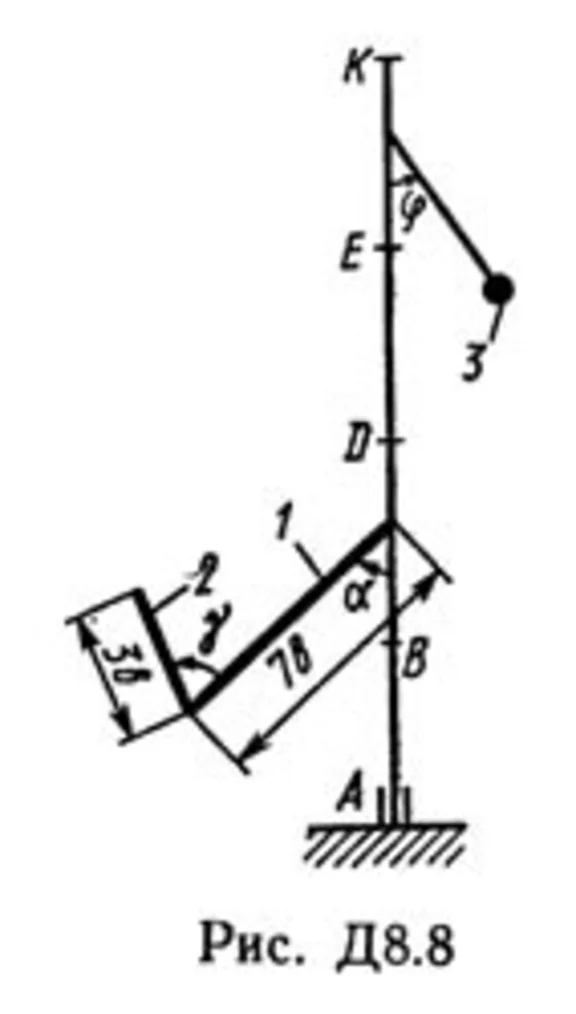

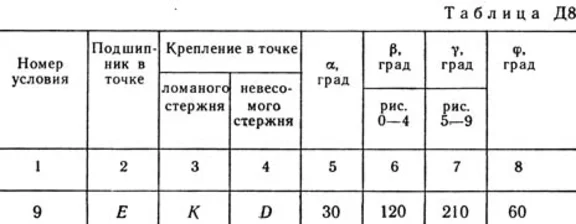

Vertical shaft AK (Fig. D8.0 - D8.9), rotating with a constant angular velocity ω = 10 s-1, is fixed by a thrust at point A and a cylindrical bearing at the point indicated in Table. D8 in column 2 (AB = BD = DE = EK = a). A thin, uniform broken rod of mass m = 10 kg, consisting of parts 1 and 2, is rigidly attached to the shaft (the dimensions of the parts of the rod are shown in the figures, where b = 0.1 m, and their masses m1 and m2 are proportional to the lengths), and a weightless length bar l = 4b with point mass m3 = 3 kg at the end; Both bars lie in one plane. The fixing points of the rods are indicated in the table in columns 3 and 4, and the angles α, β, γ, φ are given in columns 5-8. Disregarding the weight of the shaft, determine the reaction of the thrust bearing and the bearing. When counting, take a = 0.6 m.
