Solution of the D3 B01 (Fig. 0 conv. 1) termehu Targ 1988

• USD
• RUB
• USD
• EUR
Sold: 7
Refunds: 0

Content: d3-01.zip 42,69 kB
Loyalty discount! If the amount of your purchases from the seller TerMaster is more than:
 250 \$ the discount is 15% show all discounts 1 \$ the discount is 1%
TerMaster seller information

Seller will give you a gift certificate in the amount of 0.04 \$ for a positive review

Product description

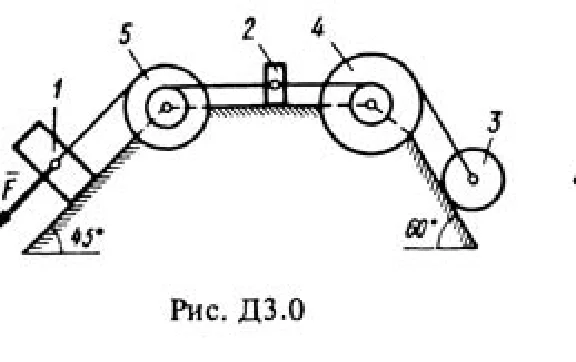

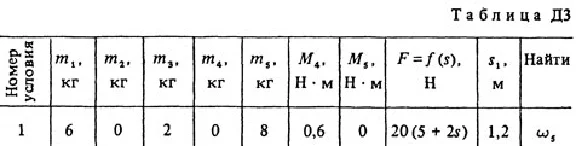

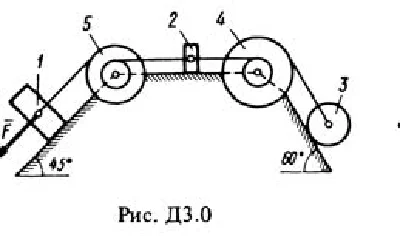

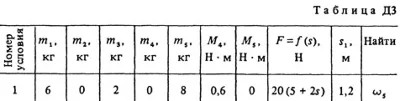

Solution of the D3 Option 01 on the theoretical mechanics of the problem book Targ SM 1988. Conditions problem D3 (p. 44 in the training manual Targ SM): The mechanical system consists of the weights 1 u2 (coefficient of friction of the cargo plane F = 0,1), a uniform continuous cylindrical roller 3 and the stepped pulleys 4 and 5 with radii steps R4 = 0,3 m, r4 = 0,1 m, R5 = 0,2 m, r5 = 0,1 m (the mass of each pulley assumed uniformly distributed over its outer rim) (Fig. D3.0, D3.9, Table. D3). Body of interconnected yarns wound on the pulleys; Lots of threads are parallel to the planes. Under the force of F = f (x), which depends on the displacement of the point of force application, the system is set in motion from rest. When the system moves on pulleys 4 and 5, a constant torque resistance equal respectively M4 and M5. Determine the value of the required quantity at the time when the displacement of the point of application of force F is equal to s1.

Payment, you will receive a professional appearance, a proven solution to the problem D3 B01 (Figure 0 condition 1) on the theoretical mechanics of Reshebnik Targ SM 1988 for external students. Solution fulfilled by methodical instructions and control tasks for part-time students of energy and other specialties. The decision formalized in format word, packed to the archive zip. The solution also included in the product at a discount, "Targ SM 1988 decision 10 14 tasks option."

I would be very happy if after passing the solutions you return to the site and leave a positive review. Believe me, for me it is very important.
