Solution of the D4 (reference 2) Option 01 Dievskaya VA
Sold 12Product description
D4 ACTIVITY 2: For the schemes shown in Figures 1-30, using the Lagrange principle, to determine the amount of force F (for the presence of friction - the maximal value) at which the mechanical system is in equilibrium. Inputs: G1 = the weight load of 20 kN, the torque M = 1 kN * m, drum radius R2 = 0.4 m (at a double drum also has r2 = 0.2 m), the angle a = 30 ° and coefficient of friction f = 0.5. Unnumbered blocks and rollers considered weightless. Friction on the axes of the drum and blocks neglected.

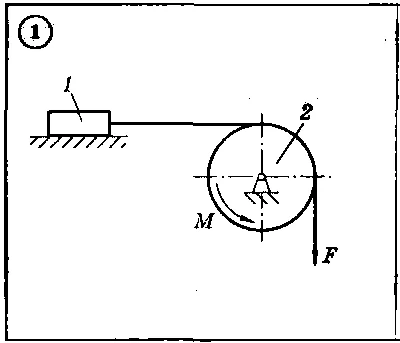

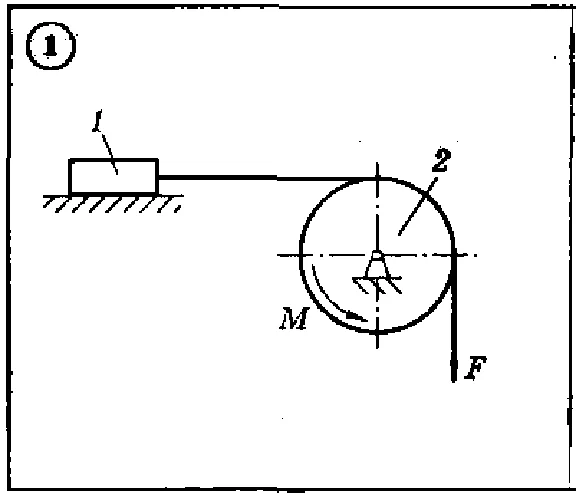

Solution 1 job tasks D4 scheme №1
Main features
- Content type File
- Content description 56,41 kB
- Updated on the site 08.01.2016
Additional description
The task is made in the format word (typed or hand-written decision in a Word), packed to the archive zip (open on any PC).
After checking the solutions I would be very grateful if you leave your positive feedback.
