Product description

Solution of the D4 (reference 2) Option 14 Dievskaya V

Termehu Dievskaya VA task 2 task Dynamics 4 (D4) on the theme "The Lagrange principle":

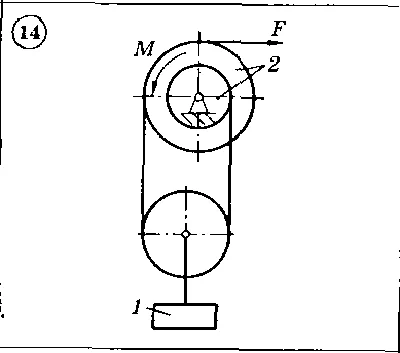

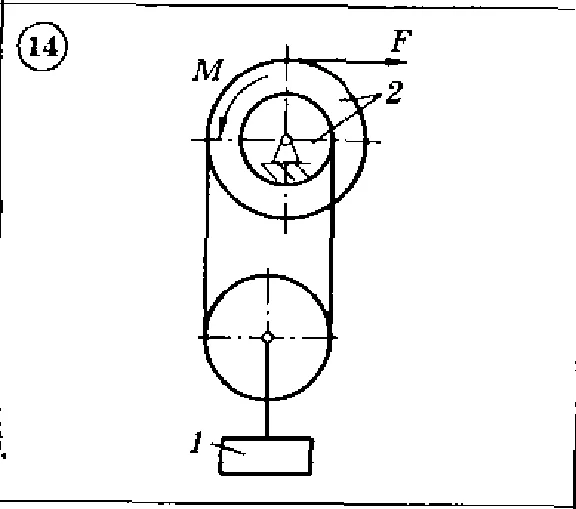

D4 ACTIVITY 2: For the schemes shown in Figures 1-30, using the Lagrange principle, to determine the amount of force F (for the presence of friction - the maximal value) at which the mechanical system is in equilibrium. Inputs: G1 = the weight load of 20 kN, the torque M = 1 kN * m, drum radius R2 = 0.4 m (at a double drum also has r2 = 0.2 m), the angle a = 30 ° and coefficient of friction f = 0.5. Unnumbered blocks and rollers considered weightless. Friction on the axes of the drum and blocks neglected.

Solution 1 job tasks D4 scheme №14

Additional information

Immediately after payment you will receive a link to the file with the decision of the task 2 task on the theoretical mechanics D4 B14 (skhema14) in the test book "theoretical mechanics" Dievskaya VA Malyshev IA 2009 for university students.
The task is made in the format word (typed or hand-written decision in a Word), packed to the archive zip (open on any PC).
After checking the solutions I would be very grateful if you leave your positive feedback.
