Product description

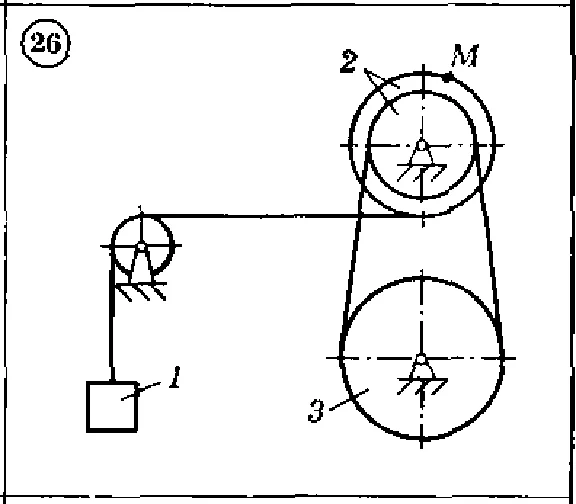

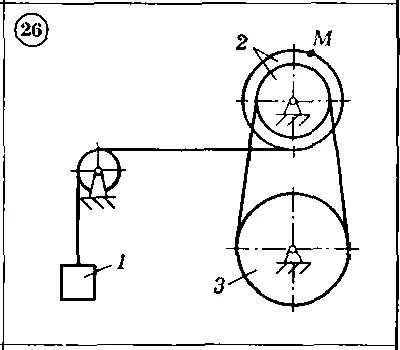

For the following schemes 1-30 by mechanisms known characteristics of movement of the load 1 - speed and acceleration A1x V1x, or for a given equation of motion of the body 1 - x (t), or for a given equation of motion of the shaft 3 - F3 (t) to identify and show Figure velocity and acceleration of the point M and the velocity and acceleration of the load 1 in a given time. Input data, including the radii of gears, pulleys, drums, are shown in the table.
Solution of the K2 Figure 26
Main features
- Content type File
- Content description 89,18 kB
- Added to the site 16.11.2015
Additional information
The task is made in the format word (typed or hand-written decision in a Word), packed to the archive zip (open on any PC).
After checking the solutions I would be very grateful if you leave your positive feedback.
