Solution of the problem of the collection of Kep 2.4.31
Sold <10
The sale of this product is suspended.
Product description

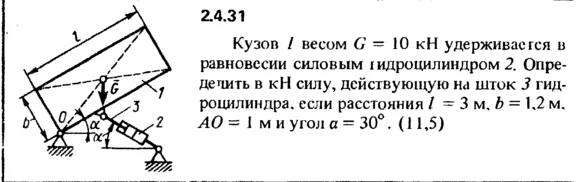

1 Body weight G = 10 kN force is held in equilibrium in the cylinder 2. Determine kN force acting on the piston rod of the hydraulic cylinder 3, if the distance l = W m, b m = 1,2, AD = 1 m and the angle a = 30 °.
Main features
- Content type File
- Content description 44,67 kB
- Updated on the site 09.11.2016
Additional description
Immediately after payment you will receive a link to the zip file with the task 2.4.31 (Chapter 1 - statics topic - 2.4: Balance arbitrary plane system of forces.) In theoretical mechanics from the collection of short tasks Kep OE, JA Viba, OP Grapis, JA Svetinysh and others. Publishing Moscow / Graduate School / 1989, 2009, 2012. The task is made in the format word (typed or hand-written decision in a Word) or in manuscript form in the format gif, packed to the archive zip (open on any PC) .After checking the solutions would be very grateful if you leave your positive feedback.
