Sweep direct transition (cone)
Sold: 5
last one 15.02.2020
Refunds: 0
Uploaded: 15.02.2021
Content: razvortka-pryamogo-perekhoda-(konusa)-v.01.21.rar 112,21 kB
Refunds: 0
Uploaded: 15.02.2021
Content: razvortka-pryamogo-perekhoda-(konusa)-v.01.21.rar 112,21 kB
Product description

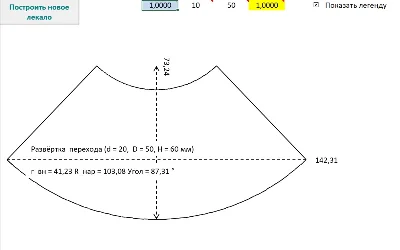

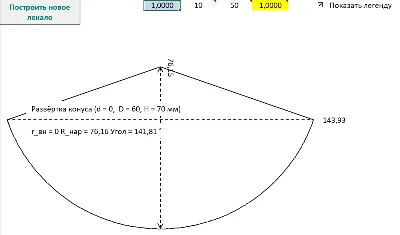

1. An Excel table for calculating the coordinates of the points of construction of the development of a direct transition with parallel bases. We introduce the lower D, upper d diameters and the transition height H and we obtain all the necessary dimensions for constructing a scan. Transitions with accessible and inaccessible peaks are subject to calculation. For d upper = 0, we obtain the dimensions of the cone. Building is done manually.
2. An Excel spreadsheet containing a macro that draws a full-size scan. We print, cut and transfer to the workpiece.
