Task 011006-0101-0002 v (judgment of ElektroHelp). Calculation of the DC circuit.
Refunds: 0
Uploaded: 01.03.2008
Content: 011006-0101-0002-v.zip 165,48 kB
Product description

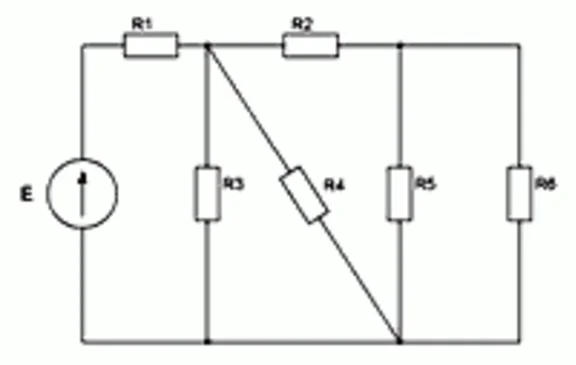

For the circuit to determine:
1. The currents in the branches conversion method (scheme easier by replacing sections with parallel or serial connection equivalent elements).
2. The power to develop a source of energy and power consumers. Check the balance of power.
3. Write the equations of the first Kirchhoff's law for circuit nodes. Write the equation for the second Kirchhoff's law for any closed loop including EMF E (to solve a system of equations should not be).
Given: E = 60 B; R1 = 6 Ohm; R2 = 11 ohms; R3 = 7 ohms; R4 = 12 Ohms; R5 = 8 ohms; R6 = 13 ohm.
Additional information
Calculation branched linear circuit with a DC electric power source by convolution (equivalent transformations). Checking the balance of power. Equations of Kirchhoff's law.
