Task 011013-0113-0001 (judgment of ElektroHelp). Calculation of the DC circuit.
Refunds: 0
Uploaded: 08.03.2008
Content: 011013-0113-0001-v.zip 171,6 kB
Product description

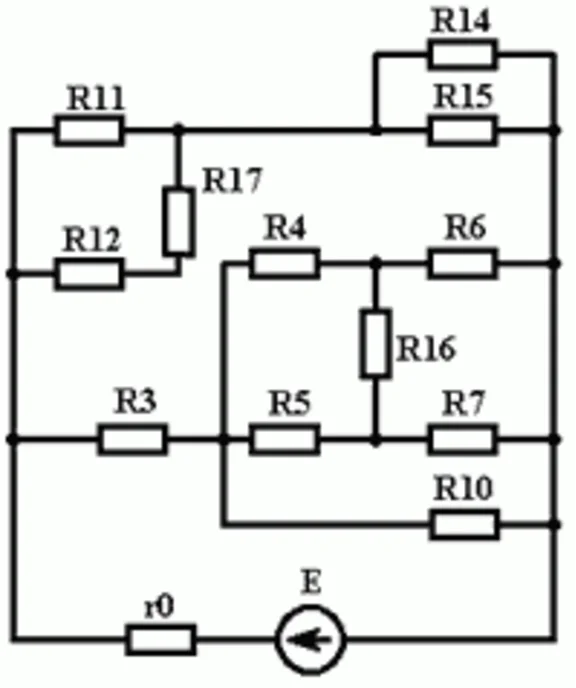

To determine the equivalent circuit (input) circuit resistance with respect to the power source terminals, current and voltage drop in all branches of the chain. Create balance of power.
E = 30 V, R0 = 0,2 ohms, R1 = 2 Ohms, R2 = 0 ohms, R3 = 3 ohms, R4 = 5 ohms, R5 = 2 ohms, R6 = 2 ohms, R7 = 4 ohms, R8 = 5 Ohm, R9 = 0 ohms, R10 = 6 ohms, R11 = 7 ohms, R12 = 5 ohms, R13 = infinity, R14 = 2 Ohm, R15 = 3 ohms, R16 = 4 Ohms, R17 = 5 ohms
Additional information
Calculation of DC link by folding and equivalent transformations. The balance of power.
