The calculation of a two-stage low-frequency amplifier The calculation of a two-stage low-frequency amplifier

Examination of Schematic.


The calculation of a two-stage low-frequency amplifier


Year: 2009


Assignment: Initial data for calculation are as follows:


1) the amplitude of the output voltage Vout = 1;


2) The load resistance RL = 200 ohms;


3) The source impedance Rc = 20 ohm;


4) The lower cut-off frequency fn = 15 Hz;


5) the minimum temperature Tmin = 0 C;


6) Maximum temperature Tmin = 50 C;


7) The power supply voltage of 5 V. Ek =

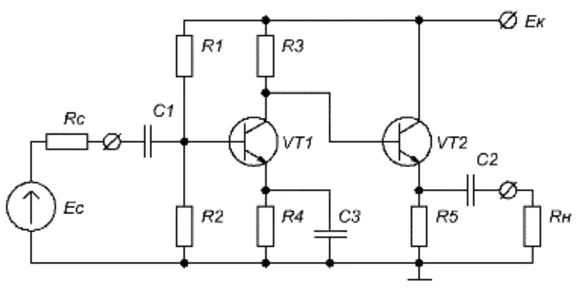

As a scheme for the construction of the amplifier using the circuit shown in the figure.
