The coupling coil (3D model)

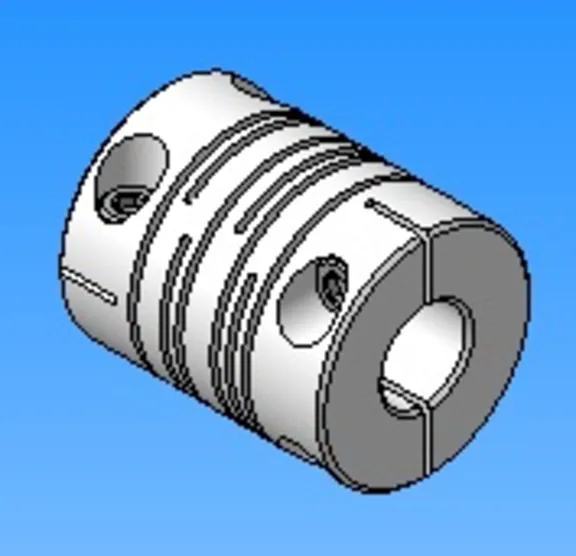

3D model of helical couplings made in KOMPAS-3D V12.
Dimensions: shaft diameter 10 mm, outer diameter 25 mm, length 31 mm.
The archive of submission:
- 3D-models of parts and assemblies in the following formats: KOMPAS-3D V12, ACIS (.sat)
- Drawings in a format KOMPAS-3D V12
