UGO contact connections

A collection of conventional graphic symbols for designing electrical circuit diagrams.
Based on GOST 2.755-87 ESKD "Conventional Graphic Symbols in Electrical Circuits. Switching Devices and Contact Connections."

Symbols:
1. Switching device contacts.
2. Two-position switching device contacts.
3. Multi-position switching devices.
4. Contact connection contacts.
5. Sensor elements.

Format: DWG.

124 elements.
100 according to GOST.

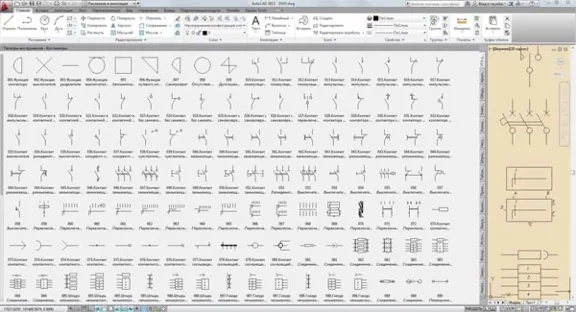

For convenience, the elements are organized into a tool palette of AutoCAD 2010 blocks.

The archive also contains files created as standard DWG drawings, compatible with AutoCAD 2004-2014, Kompas, ZWCAD, nanoCAD, BricsCAD, and others.
