Product description
A collection of symbolic symbols used in the design of automated metering systems.
The following equipment symbols are presented:
1. Electricity meters.
2. RJ connectors.
3. Interface converters.
4. Fiber-optic communication line components according to GOST 2.761-84.
5. Data transmission cables.
6. Instrument transformers.

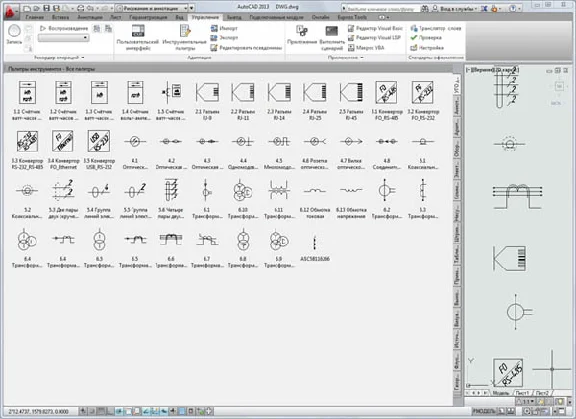

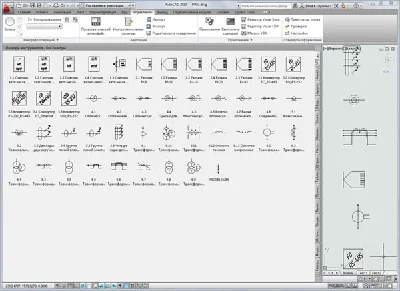

For convenience, the symbolic symbols are organized into a tool palette of AutoCAD blocks.
The archive also contains symbolic symbols for creating automated metering systems, as a standard drawing in AutoCAD 2004/2010 format.
The following equipment symbols are presented:
1. Electricity meters.
2. RJ connectors.
3. Interface converters.
4. Fiber-optic communication line components according to GOST 2.761-84.
5. Data transmission cables.
6. Instrument transformers.
For convenience, the symbolic symbols are organized into a tool palette of AutoCAD blocks.
The archive also contains symbolic symbols for creating automated metering systems, as a standard drawing in AutoCAD 2004/2010 format.
Main features
- Content type File
- Content description 183,5 kB
- Updated on the site 23.10.2014
