Product description
A collection of graphic symbols for designing general hydraulic systems, including heating systems.
Based on GOST 2.782-96 "Unified System for Design Documentation. Graphic Symbols. Hydraulic and Pneumatic Machines."
DWG format.
89 elements.
100 according to GOST.

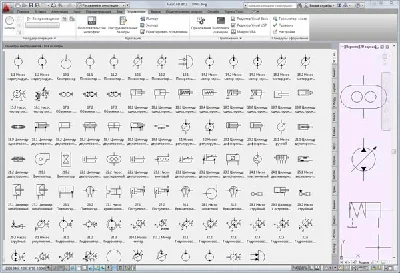

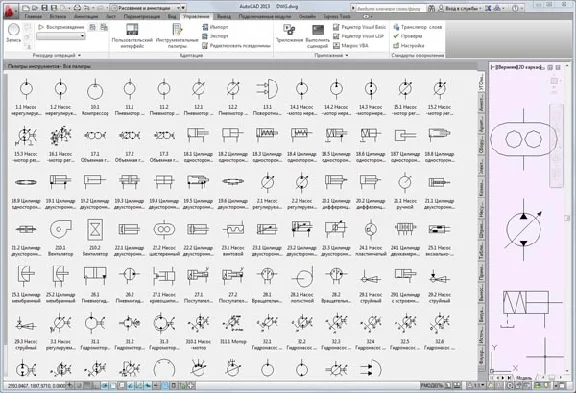

For convenience, the elements are organized into a tool palette of AutoCAD 2010 blocks.
The archive also contains files created as standard DWG drawings, compatible with AutoCAD 2004-2014, Kompas, ZWCAD, nanoCAD, BricsCAD, and others.
Based on GOST 2.782-96 "Unified System for Design Documentation. Graphic Symbols. Hydraulic and Pneumatic Machines."
DWG format.
89 elements.
100 according to GOST.
For convenience, the elements are organized into a tool palette of AutoCAD 2010 blocks.
The archive also contains files created as standard DWG drawings, compatible with AutoCAD 2004-2014, Kompas, ZWCAD, nanoCAD, BricsCAD, and others.
Main features
- Content type File
- Content description 407,73 kB
- Updated on the site 28.10.2014
