Product description
A collection of conventional graphic symbols for designing electrical circuit diagrams.
Based on GOST 2.727-68 "Unified System for Design Documentation. Conventional Graphic Symbols in Schematic Diagrams. Arresters, Fuses."
Format: DWG.
44 elements.
100 according to GOST.

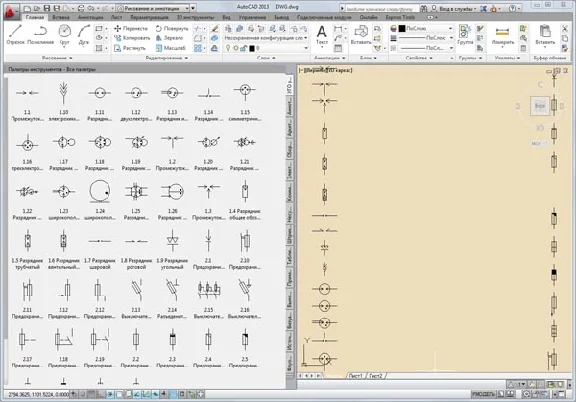

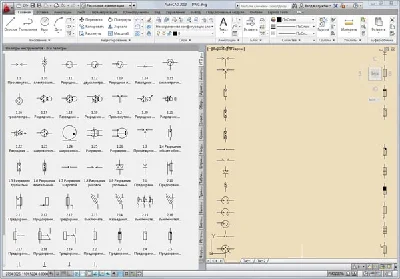

For convenience, the elements are organized into a tool palette of AutoCAD 2010 blocks.
The archive also contains files created as standard DWG drawings, compatible with AutoCAD 2004-2014, Kompas, ZWCAD, nanoCAD, BricsCAD, and others.
Based on GOST 2.727-68 "Unified System for Design Documentation. Conventional Graphic Symbols in Schematic Diagrams. Arresters, Fuses."
Format: DWG.
44 elements.
100 according to GOST.
For convenience, the elements are organized into a tool palette of AutoCAD 2010 blocks.
The archive also contains files created as standard DWG drawings, compatible with AutoCAD 2004-2014, Kompas, ZWCAD, nanoCAD, BricsCAD, and others.
Main features
- Content type File
- Content description 212,11 kB
- Updated on the site 16.10.2014
