Water flows from a closed vessel with an overpressure o

The seller is blocked and sales of the product are suspended

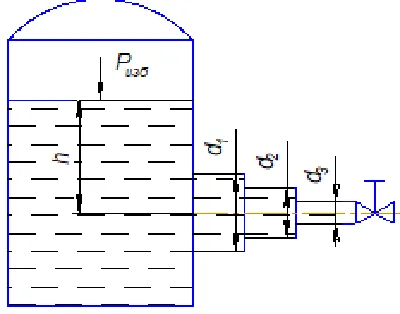

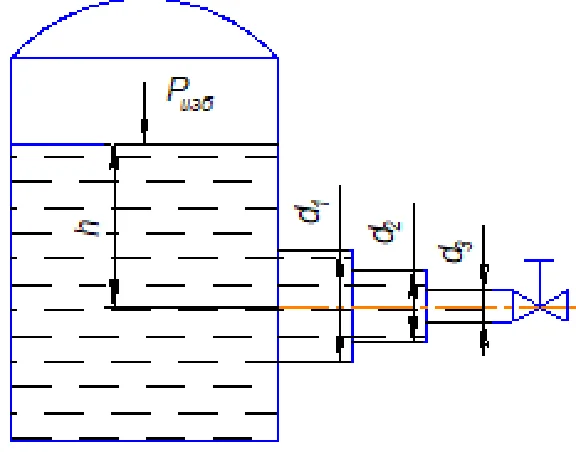

Water flows from a closed vessel with an overpressure of Riesb under pressure h through a horizontal pipe of variable cross-section d1, d2, d3, ending with a normal valve. Determine the flow rate of water Q, build a line of piezometric, speed and full pressure. When calculating, consider head losses only for local resistances.
Buy and download a ready-made solution.
Product Content: task solution in Word format.
